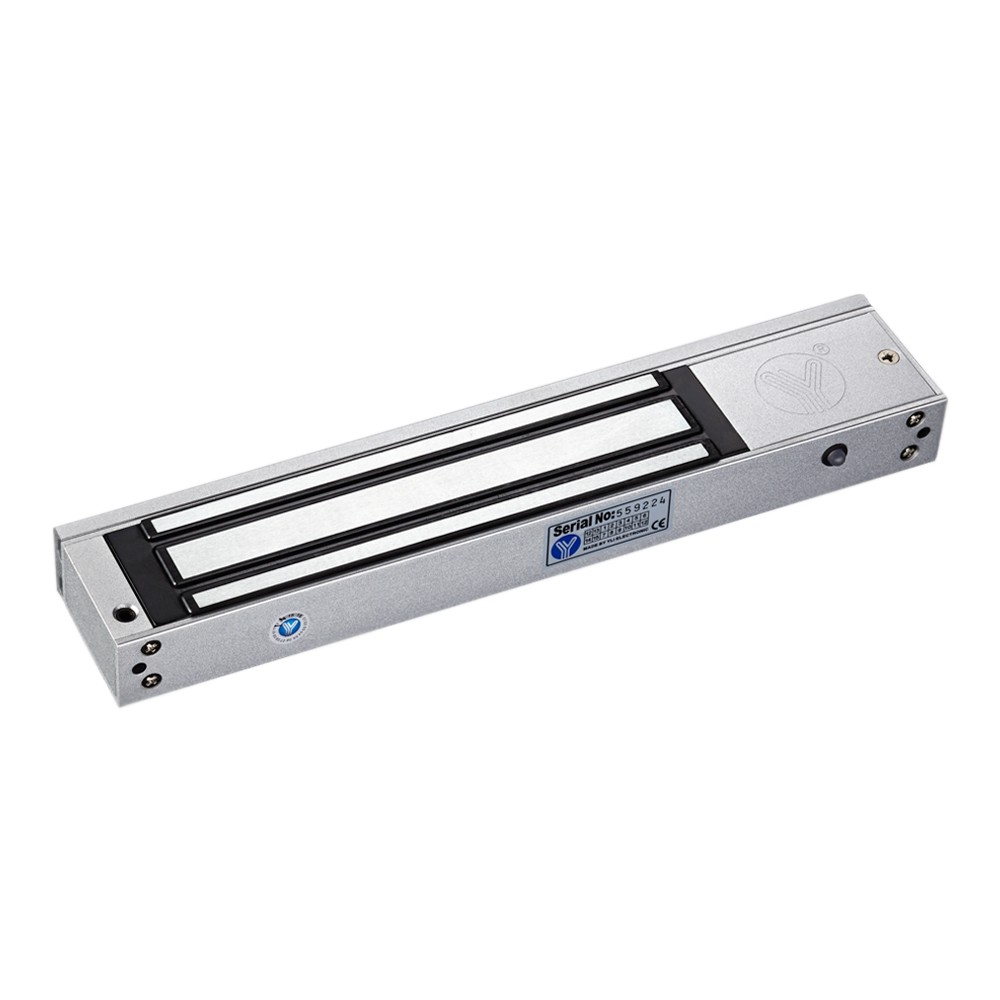

YLI YM 280T LED 280kg Single Door Magnetic Italy Electromechnaical Locks Small

Availability :
In Stock
Parameter: Lock Size: 250Lx31.5Wx22.5m Armature plate: 180Lx38Wx11H(mm Holding Force: 280kg 600Lbs Voltage/Current: 12VDC/300mA(24VDC/150mA adjustable LED: Yes White colour when no power. Green colour when work with power(the door is closed Red colour when work with power(the door is open Signal Output: Yes, NO/NC/COM Optional Bracket: ABK-280UL, ABK-280L/LC, ABK-280ZL, ABK-280ZLC, ABK-280GZ Suitable for: Wooden door, Glass door, Fireproof door Surface Temp: 20 degree Finishes for Shell: Anodized aluminum Finishes for Magnetic & Armature: Zinc Weight: 2.1kg
PKR 12000 PKR 13500
Qty :

Technical Data:
Collinear Load Test 280kg, 600pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door.
LED Indicates the door Status.
Lock Status sensor(NO/NC/COM).
Anti-Residual Magnetism Designed.
High Strength Material, Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force, Dual Insulative Housing.
CE Certificate by European Union, MA Certificate by China Public Security Office.
